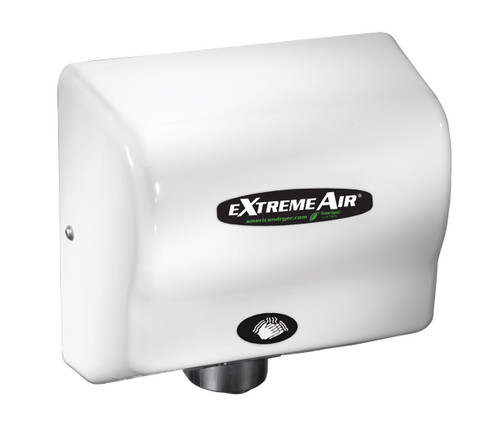

American Dryer ExtremeAir GXT9 Hand Dryer, Heated - White ABS
- 9.00 LBS
- Free Shipping
WallMountDryer.com guarantees the best price on American Dryer hand dryers. WallMountDryer.com is an American Dryer Authorized Distributor. If you find a current lower price advertised online on an identical hand dryer, we will match or beat the price. Call us at 954-933-8420 for details on our Best Price Guarantee or if you have questions on which dryer is best for your particular application.
The eXtremeAir is THE HIGH SPEED HAND DRYER FOR THE NEXT GENERATION. The patented design is the most compact and affordable high speed hand dryer made in the U.S.A.
Most high speed hand dryers have one setting – LOUD. This is a problem in most applications. Only the EXTREMEAIR has our infinitetly adjustable sound and speed. This makes the EXTREMEAIR perfect for any application from a quiet library to a packed sports stadium.
MOST COMPACT high performance hand dryer in the industry. It’s 43% smaller than old “industry standard” high speed dryers; yet, it’s just as powerful and uses less electricity.
VANDAL RESISTANT – Two tamper resistant screws secure the heavy duty vandal resistant cover to the steel base. Motor and heater are inaccessible to vandals. Air intake is shielded for additional safety.
HEAVY DUTY ONE-PIECE COVER OPTIONS -
Flame retardant white ABS
Steel with white epoxy finish (M)
Steel with satin chrome finish (C)
Stainless steel with #4 brush finish (SS)
MOTOR – Powerful series commutated through-flow discharge vacuum motor/blower with automatic resetting thermal protector. 5/8 HP, 24,000 RPM.
AUTOMATIC SENSOR – RoHS compliant lead-free design. Microprocessor controlled infrared sensor turns dryer on when hands are under the outlet for up to 80 seconds.
HEATING – element to instantly raise the air temperature to 135˚F. The heating element has an automatic thermal protector and operates in the black range for maximum life.
WARRANTY – 5-year limited warranty with same-day factory repair or shipment of replacement parts.
DIMENSIONS – Surface: 10-1/8” W x 9-3/8” H x 5-5/8” D
MOUNTING HEIGHTS –
DRYER PLACEMENT - Dryers should be placed at least 2 feet apart and at least 12” from washbasin. Do not install dryer over washbasin. Automatic dryers should be at least 18” above any projection which may interfere with the operation of the automatic sensor.
ELECTRICAL REQUIREMENTS - EXT dryers do NOT require a dedicated line. Do not connect more than threeEXT dryers to one 20 amp line.
MOUNTING - One side of dryer should be mounted to stud. All surface mount dryers are provided with conduit entrances for both between-wall and surface wiring.
Average traffic washroom..........................1 dryer per 2 washbasins
Heavy traffic washroom..........1 dryer per
washbasin 54” wash fountain....................4 dryers per sink
SHIPPING WEIGHT: – GXT 9 lbs, GXT-M/C 10 lbs
OPTIONAL RECESS KIT (MODEL AD-RK):
HAND DRYER INSTALLATION DIAGRAM
